LUZ
Wall

LUZ-W31 105.840.AS/DALI

LUZ-W31 105.840.AS/DALI

Special options

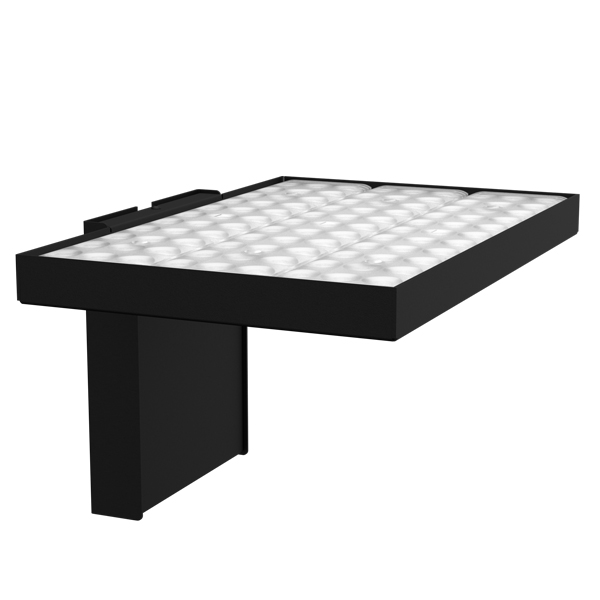

wall luminaire for indirect lighting, asymmetrical light distribution beaming forward, outstanding ease of maintenance, no UV and thermal emissions, housing and mounting box made from sheet steel, lens optics made from matt PMMA, direct screwing on of the mounting box on wall, 5-pole terminal block, ballast (LED converter DALI, dimmable) integrated

Technical data

Lamps:LED Modul / CRI 80 / 4000 K
Lifetime:L90 B50 50.000 h
L80 B50 100.000 h
L80 B20 50.000 h
System power: 36.6 W
Luminaire luminous flux: 5340 lm
System efficiency: 147.26 lm/W
Module efficiency: 193.50 lm/W
UGR class:≤16
Beam range:Asymmetric
Beam angle:Asymmetric
Supply voltage:220 - 240 V / 50 - 60 Hz
Supply unit:ballast (LED converter DALI, dimmable)
Dimensions (LxWxH):301 x 212 x 160 mm
Norms:CE,RoHS
Protection class:I
Type of protection:IP20
Weight:1.76 kg
Colour: silver, black, white

Article overview

Article no.EANNameProduct picture
6674964043544768018LUZ-W31 105.840.AS/DALI SI
6674974043544768025LUZ-W31 105.840.AS/DALI BK
6674984043544768032LUZ-W31 105.840.AS/DALI WH

Downloads

Product information
Photometrics
Revit/BIM
Revit data available on request
Images

Tender text
